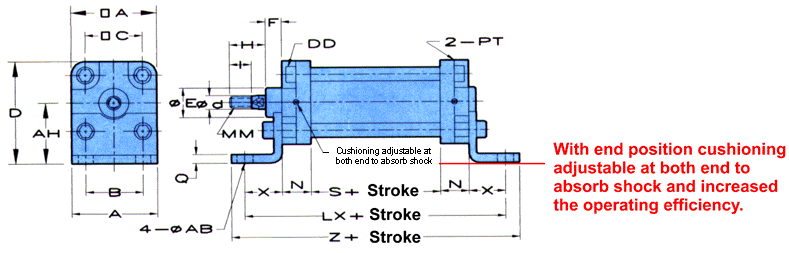

Bore dia.	Main body size												Mounting dimension
	A	C	d	E	I	MM	F	H	N	S	PT	DD	A	B	AH	D	X	AB	Q	LX	Z
40	60	44	16	30	25	M12xP1.25	15	40	27	50	1/4"	M6xP1	60	44	40	70	27	9	3.2	158	197
50	63	48	20	40	30	M16xP1.5	15	50	27	50	1/4"	M6xP1	63	48	44	75	28.5	9	3.2	161	208
63	80	60	20	42	30	M16xP1.5	17	50	29.5	50	3/8"	M8xP1.25	80	60	52.5	82	30	11	3.2	169	220
80	97	74	25	45	35	M20xP1.5	17	55	34.5	50	3/8"	M10xP1.5	97	74	60.5	109	34	13.5	4.5	187	239
100	116	90	30	55	40	M26xP1.5	20	60	36.5	60	1/2"	M10xP1.5	116	90	69	128	35	13.5	6	203	266
125	151	117	35	58	45	M30xP1.5	24	65	39	66	1/2"	M14xP2	151	117	90	166.5	44	18	6	232	280
150	173	134	40	60	50	M30xP1.5	26	70	44	66	1/2"	M16xP2	173	134	105	210	51	18	7	256	306

---
