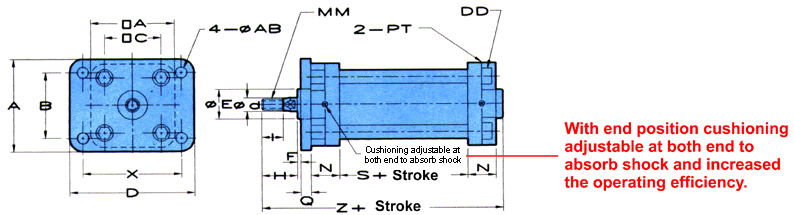

Bore dia.	Main body size											Mounting dimension
	A	C	d	E	I	MM	H	N	S	PT	DD	A	B	D	F	X	AB	Q	Z
40	60	44	16	30	25	M12xP1.25	40	27	50	1/4"	M6xP1	60	37	90	4	74	7	11	164
50	63	48	20	40	30	M16xP1.5	50	27	50	1/4"	M6xp1	63	47	110	3	90	9	12	174
63	80	60	20	42	30	M16xP1.5	50	29.5	50	3/8"	M8xP1.25	80	56	125	5	100	9	12	181
80	97	74	25	45	35	M20xP1.5	55	34.5	50	3/8"	M10xP1.5	97	70	154	1	126	12	16	196
100	116	90	30	55	40	M26xP1.5	60	36.5	60	1/2"	M10xP1.5	116	84	180	4	150	14	16	219
125	151	117	35	58	45	M30xP1.5	65	39	66	1/2"	M14xP2	151	117	222	7	185	18	17	240
150	173	134	40	60	50	M30xP1.5	70	44	66	1/2"	M16xP2	173	134	250	8	210	18	18	257

---
