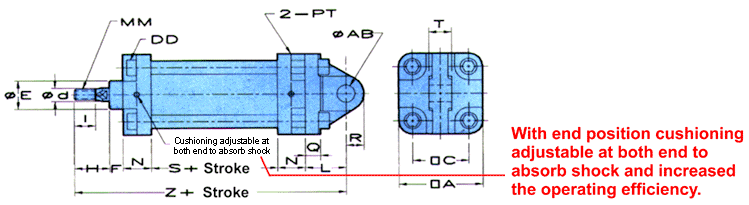

Bore dia.	Main body size												Mounting dimension
	A	C	d	E	I	MM	F	H	N	S	PT	DD	L	R	Q	AB	T	Z
40	60	44	16	30	25	M12xP1.25	15	40	27	50	1/4"	M6xP1	28	11	11	12	15	185
50	63	48	20	40	30	M16xP1.5	15	50	27	50	1/4"	M6xP1	31	12	11	12	18	200
63	80	60	20	42	30	M16xP1.5	17	50	29.5	50	3/8"	M8xP1.25	37	16	12	16	25	213
80	97	74	25	45	35	M20xP1.5	17	55	34.5	50	3/8"	M10xP1.5	45	25	13	20	30	236
100	116	90	30	55	40	M26xP1.5	20	60	36.5	60	1/2"	M10xP1.5	55	30	15	25	35	268
125	151	117	35	58	45	M30xP1.5	24	65	39	66	1/2"	M14xP2	65	30	18	25	35	298
150	173	134	40	60	50	M30xP1.5	26	70	44	66	1/2"	M16xP2	70	35	18	30	40	320

---
