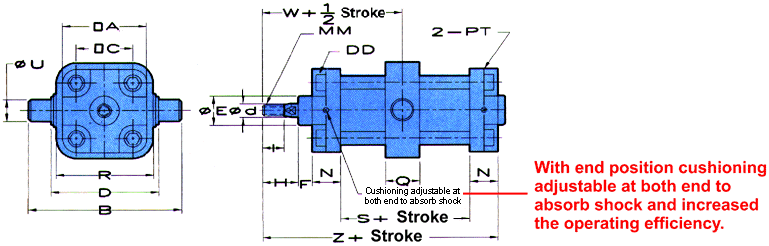

Bore dia.	Main body size												Mounting dimension
	A	C	d	E	I	MM	F	H	N	S	PT	DD	B	D	U	Q	R	W	Z
40	60	44	16	30	25	M12xP1.25	15	40	27	50	1/4"	M6xP1	115	74	16	30	66	107	159
50	63	48	20	40	30	M16xP1.5	15	50	27	50	1/4"	M6xp1	125	82	20	30	74	117	169
63	80	60	20	42	30	M16xP1.5	17	50	29.5	50	3/8"	M8xP1.25	145	95	20	35	88	121.5	174
80	97	74	25	45	35	M20xP1.5	17	55	34.5	50	3/8"	M10xP1.5	185	122	25	45	108	131.5	191
100	116	90	30	55	40	M26xP1.5	20	60	36.5	60	1/2"	M10xP1.5	210	155	30	45	140	146.5	213
125	151	117	35	58	45	M30xP1.5	24	65	39	66	1/2"	M14xP2	235	170	32	50	165	161	233
150	173	134	40	60	50	M30xP1.5	26	70	44	66	1/2"	M16xP2	292	195	40	55	182	178	250

---
