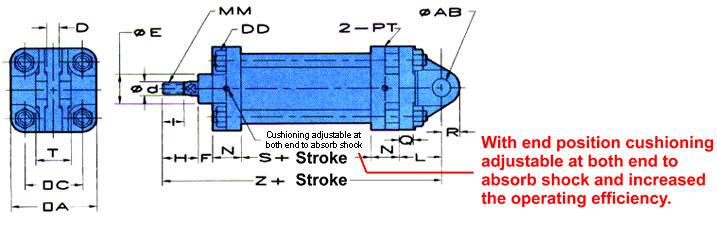

Bore dia.	Main body size												Mounting dimension
	A	C	d	E	I	MM	F	H	N	S	PT	DD	L	R	Q	AB	D	T	Z
180	202	170	45	100	50	M36xP1.5	15	75	45	75	3/4"	M16xP2	80	45	22	30	50	100	335
200	226	182	50	115	60	M45xP2	15	85	50	80	3/4"	M18xP2.5	90	45	22	40	50	100	370
250	277	225	60	140	70	M55xP2	20	100	60	80	3/4"	M20xP2.5	110	55	25	50	65	126	430
300	330	270	70	140	80	M65xP2	20	110	60	90	3/4"	M20xP2.5	110	70	36	60	80	160	450

---
